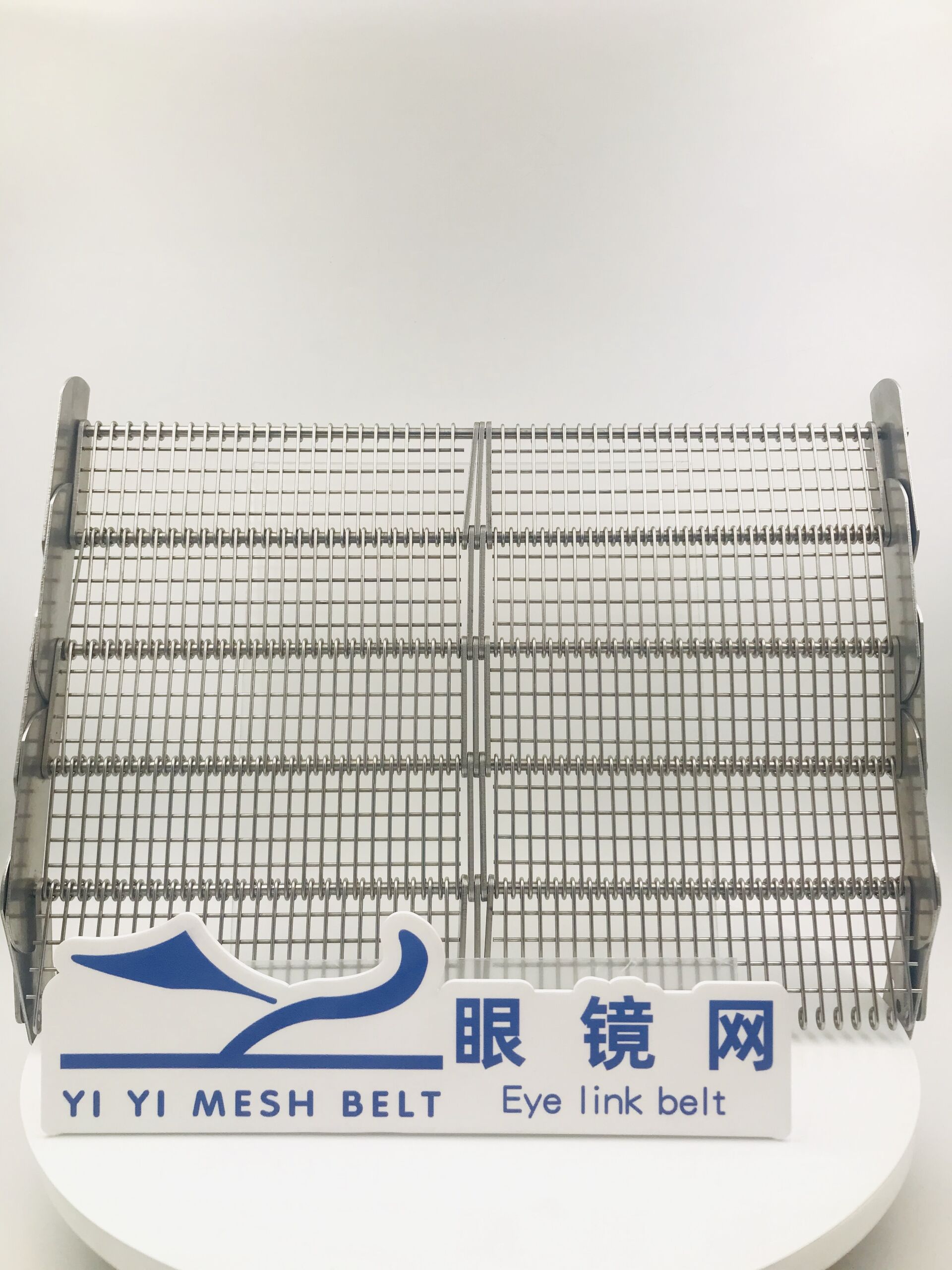

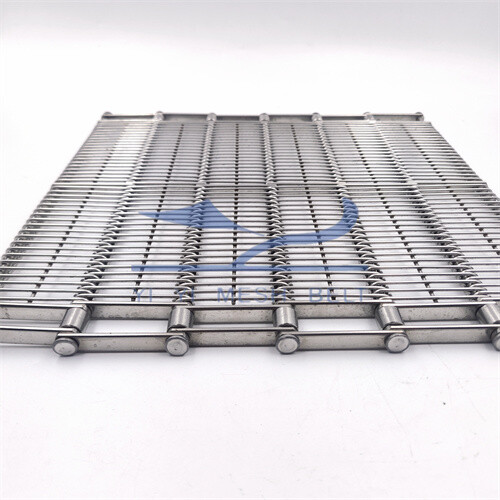

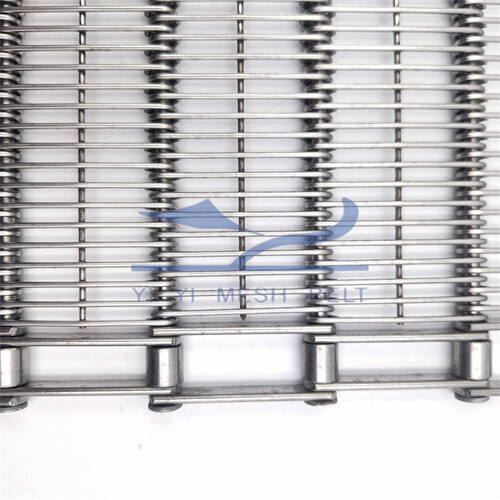

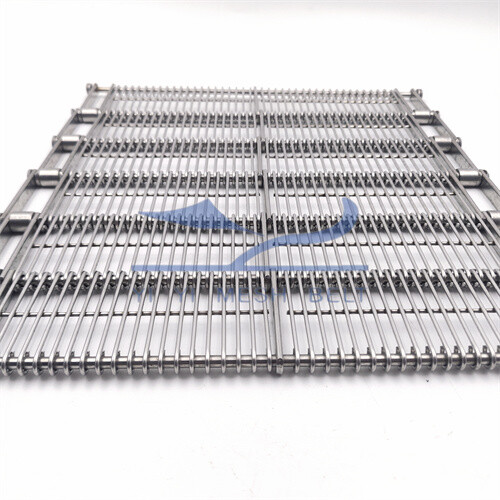

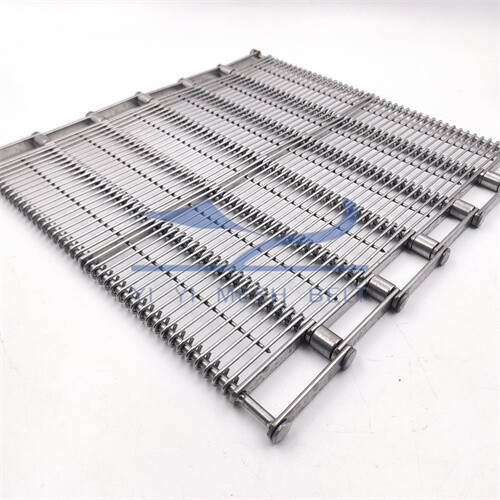

Eye link belt is made by imported CNC digital mesh weaving machine. Wire is formed into Eye-link shape and join with rod. With high tensile strength of  wire ring enhance mesh belt is more durable. Belt edge finish can assembly with reinforcing plate links or chain. Eye link belt design can add side and center flight to prevent the products from falling down to the ground.

Features：

·Large opening area, good air circulation and dehydration performance

·Driven by  sprocket to ensure the stable running and accurate tracking

·Belt surface and can be used for the transportation of unstable products. It can bear higher load and tensile strength

·Belt working temperature range of -96℃ to 600℃

·Easy clean, assemble and maintenance, solid belts with a long life

Technical Spec：

Material: SUS304 , SUS316

Chain pitch(mm): 25.4 , 31.75 , 38.1 , 50.8 , 63.5 , 76.2

Rod diameter(mm) : 5 , 6 , 7 , 8 , 10, 12

Wire diameter(mm) : 1.5 , 1.6 , 1.8 , 2 , 2.5 , 3

Spiral pitch: 2.4-100

Rod pitch(mm): 25.4 , 31.75 , 38.1 , 50.8 , 63.5 , 76.2

Belt  width (mm): 200 - 6000

Belt Length:  Customized

Sprocket：Material & sprocket special is customized as per request

Customize specifications is available.

Key Industries：

Food Processing, clean energy industry, solar panels and batteries, chemistry, electronics industry, wood, textiles, heat treatment

Key Application：

Cooking / Baking / Cooling / coatting/Frying/drying Dewatering / Sterilization& Pasteurizing / washing Transport /  Quenching

Applicable mechanical equipment:

Oven equipment/ IQF Tunnel freezing equipment/ Dehydrating equipment/ sterilizing equipment/drying equipment/filtering equipment/ cleaning equipment/cooling equipment/ quenching tank / package equipment
