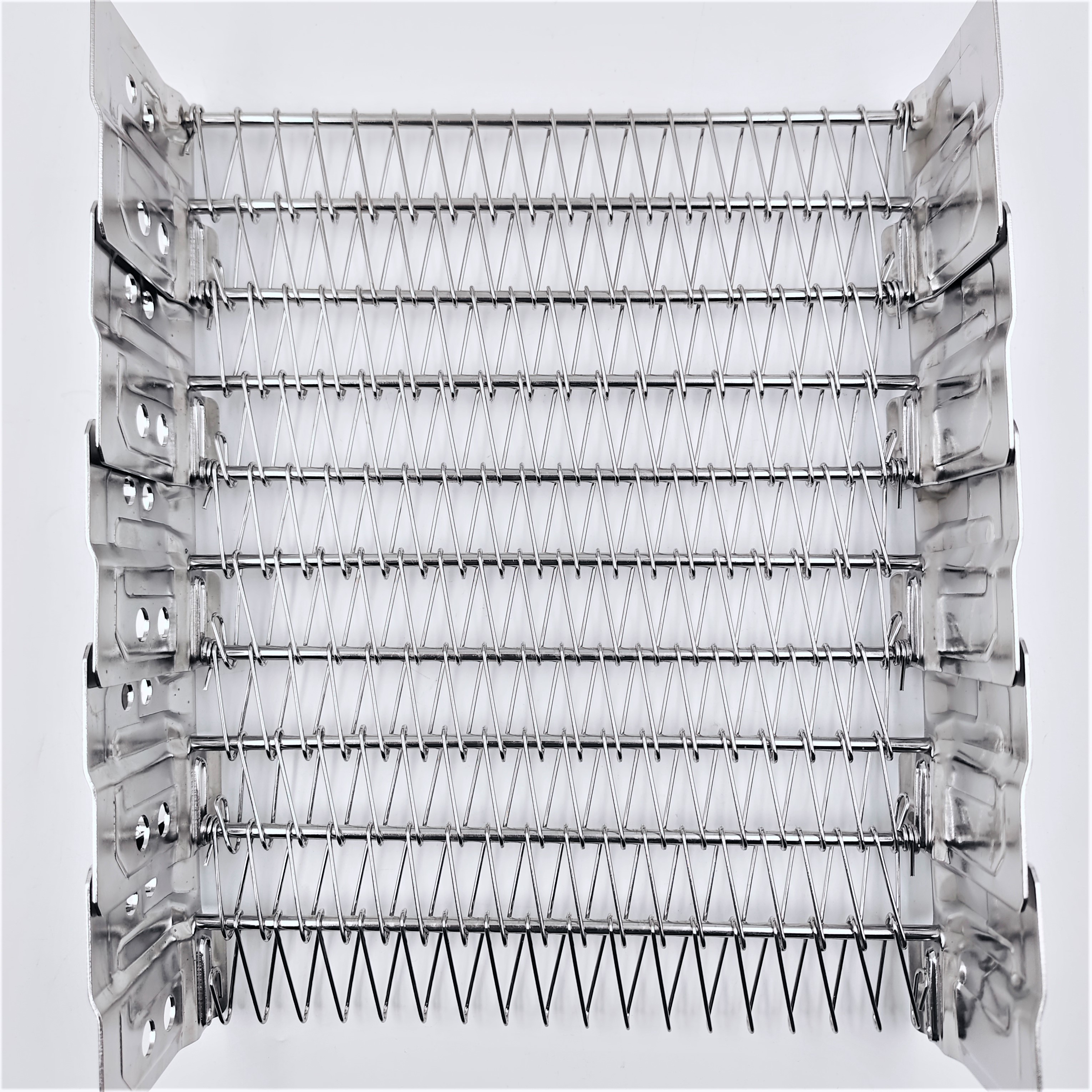

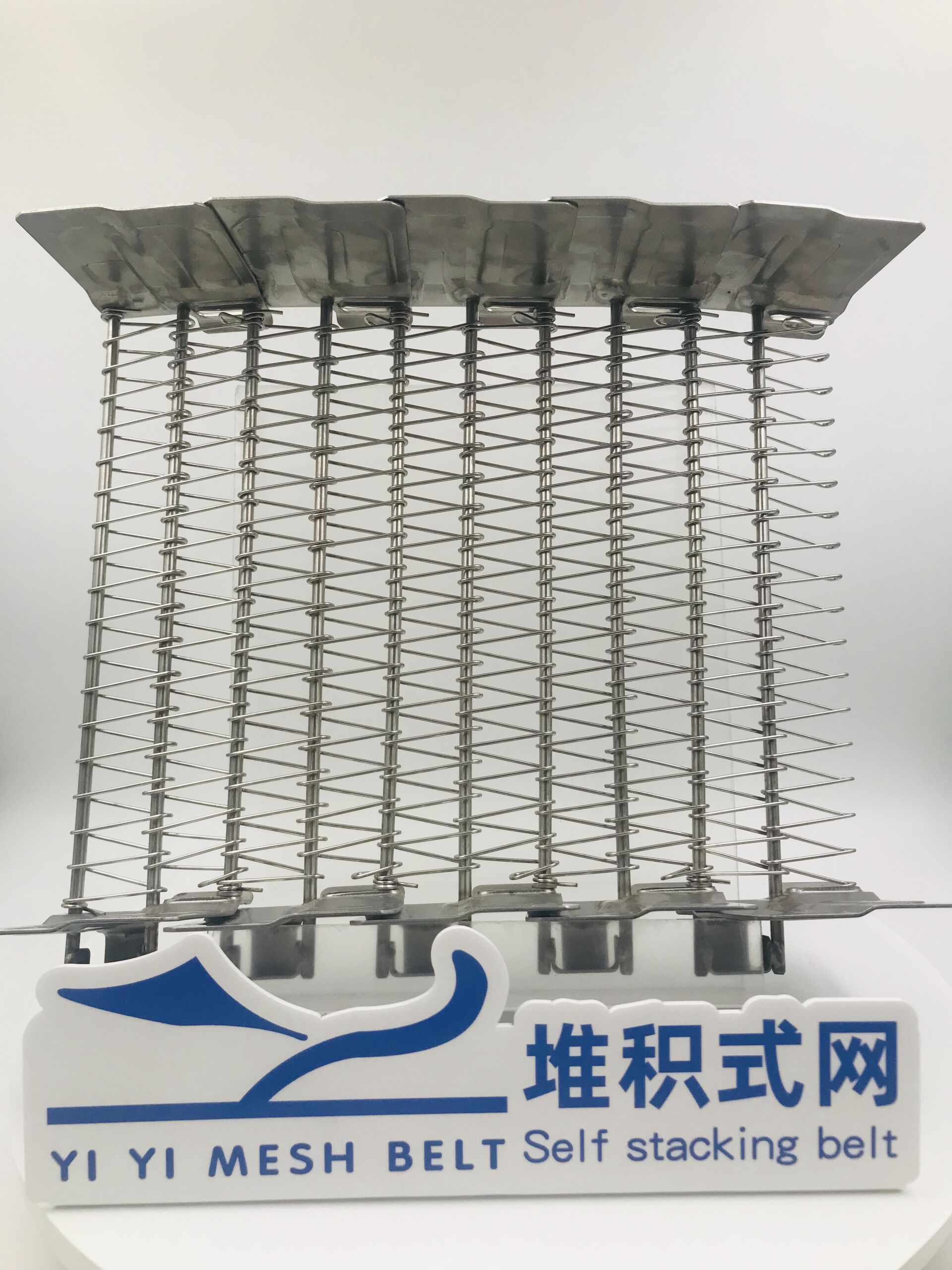

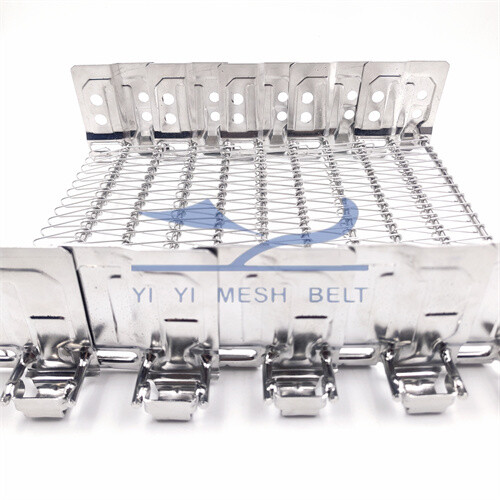

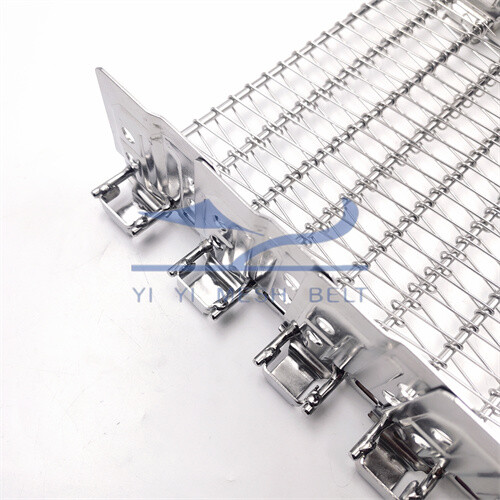

Self-stacking belt is made by imported digital mesh weaving machine and comprised of wire mesh, cross rods and plate and usually constructed with unilateral spirals.  Smooth belt surface and solid welds. It can be counter clock-wise running or clock-wise running, both of which can complete a full 360 degree turn.

Features:

1. Denser designs save space

2. Provide quick and effective food freezing

3. Smooth belt surface, excellent air ventilation, hygiene and easy to clean

4.High tensile stainless steel wire enhance belt wear resistance, high strength chain plate, enhance mesh belt strength

5.No tracking or steering is required as this is built into the design of the belt itself

Technical Specs

Material: SUS304

Wire diamete (mm):1.5 , 1.6 , 1.7

Spiral pitch(mm): 6 - 20

Rod pitch(mm): 30

Belt width(mm): 420 , 580 , 640 , 760 , 920 , 1060

Rod diameter(mm): 5 , 6 , 7

Edge finish: Welded

Belt Length:  Customized

Customize specifications is available.

Key Industries：

Snack and bakery/ Meat poultry & seafood/ Fruits and vegetables / Dairy products/ food and beverage

Key Application：

Proofing / Cooling / Freezing & chilling

Applicable mechanical equipment:

Spiral tower/quick-freezing equipment
