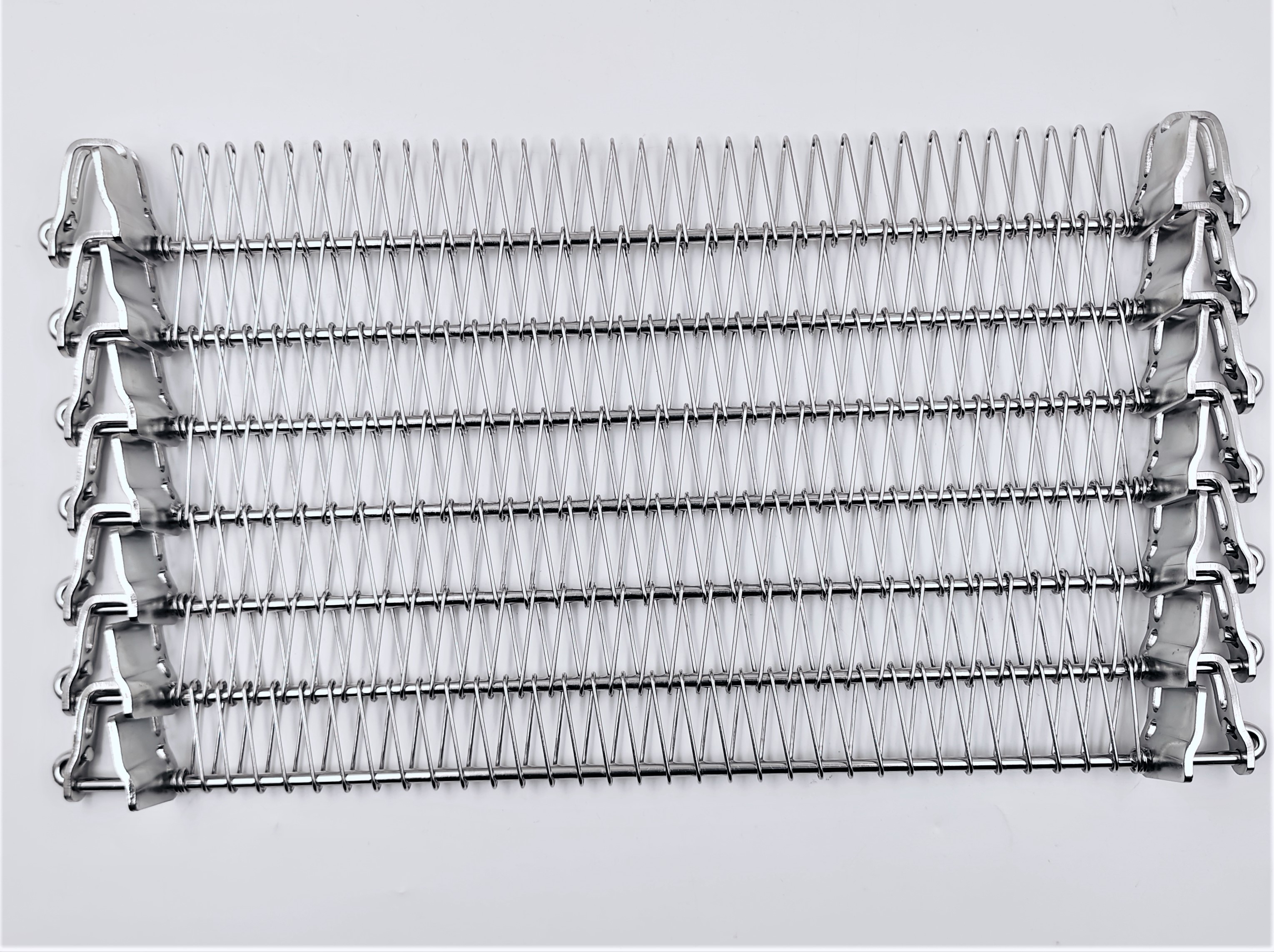

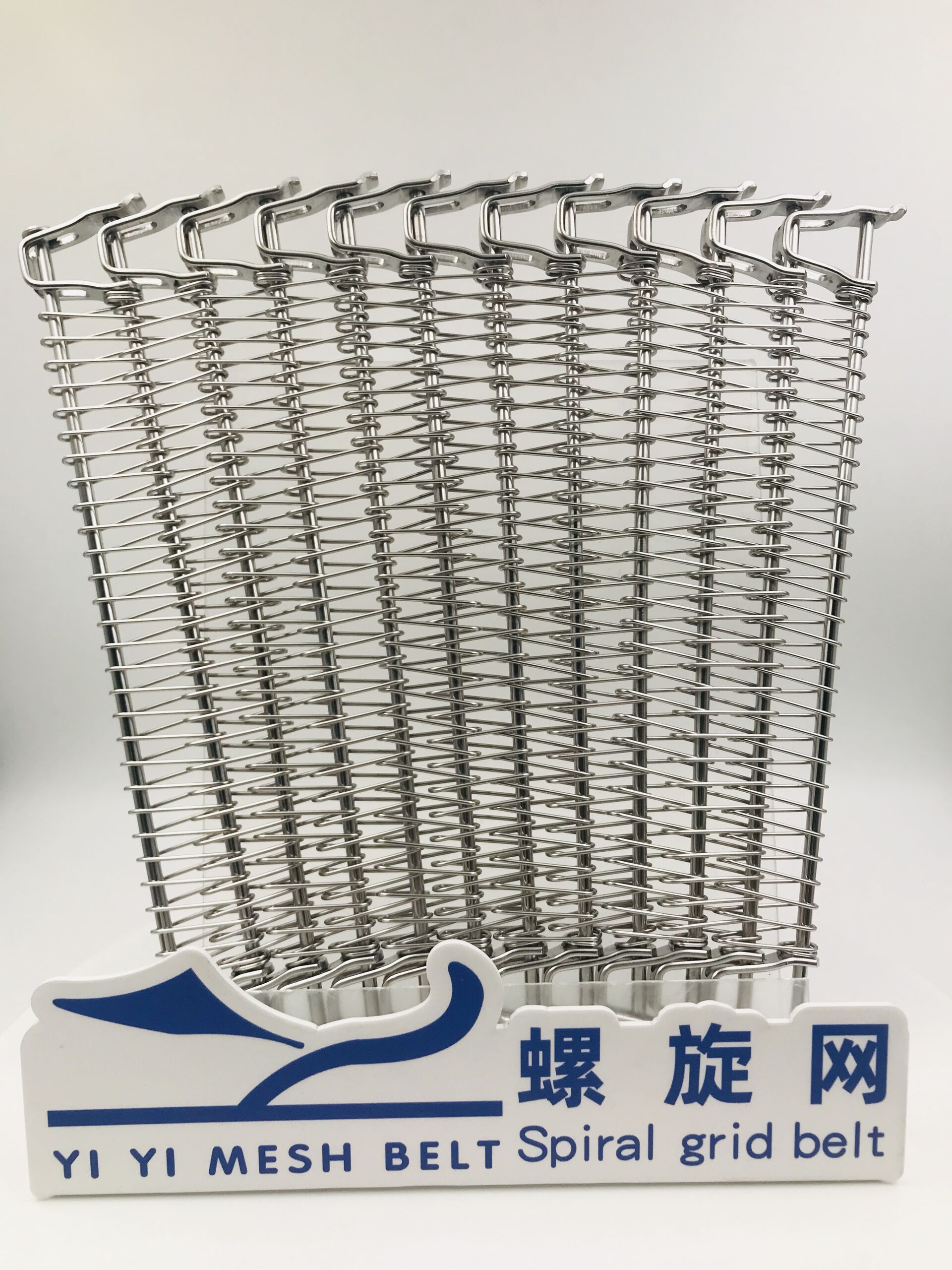

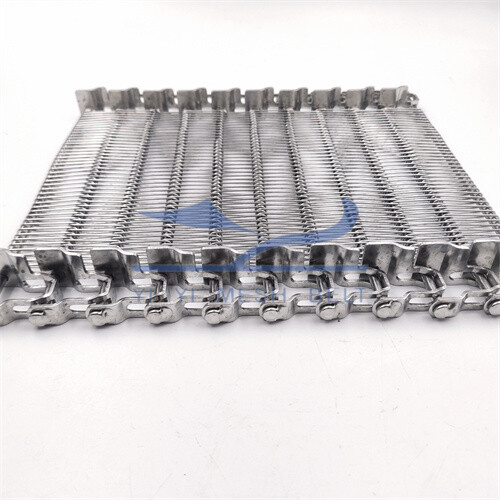

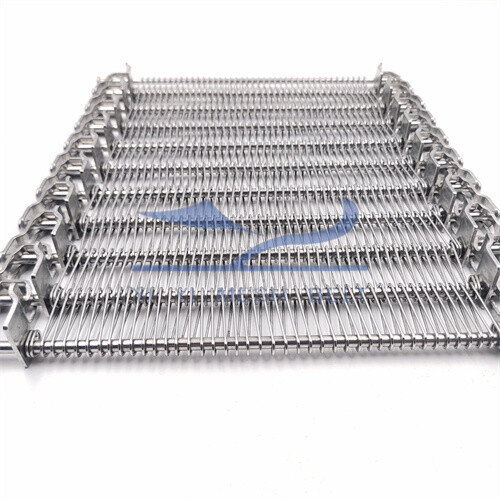

Spiral Grid belt is made by imported digital mesh weaving machine and spiral is made of high tensile strength wire which is deformation resistant. Smooth belt surface and solid welds. The belt can run both straight and 180 and 360 degree curves. Spiral grid belt can bear high pressure and stress. It is easy to maintain and dismantle. Available in mesh overlay, rod only, side guard and middle link design.

Features:

1. Smooth belt surface, excellent air ventilation, hygiene and easy to clean

2  Spiral grid belt are driven by sprockets, reliable and stable running is ensured.

Straight running and curve to 180 and 360 degrees.

3 High tensile strength hard wire is used for spiral, ensuring higher wear resistance

4 Belt edges are automatically finished to have constant smooth surface

5 Superior design and construction increase product carrying capacity

6 All welds treatment and whole belt full clean are our standard procedure

Technical Specs

Material:  SUS304 , SUS316

Rod pitch (mm): 19.05 , 25.4 , 27.4 , 30 , 30.5 , 38.1

Side guard height(mm): 24, 26, 38.1

Link thickness (mm) ; 2 , 2.5 , 2.7 , 3.1

Rod diameter (mm) : 5 , 6 , 7

Wire diameter(mm) :1.2 , 1.4 , 1.5 , 1.6 , 1.7 , 1.8

Belt width (mm): 304.8-1376

Edge finish: Welded

Belt Length:  Customized

Sprocket：Material & sprocket special is customized as per request

Customize specifications is available.

Key Industries：

Snack and bakery/ Meat poultry & seafood/ Fruits and vegetables / Dairy products/ food and beverage,

Key Application：

Proofing / Baking / Cooling / Freezing & chilling / Coating / Fry / Filtering / Cooking & Searing / Washing / Dewatering / Sterilization& Pasteurizing / Package

Applicable mechanical equipment:

Spiral tower/ Spiral freezer/ Package machinery / cooking & searing marking / washing machinery/
