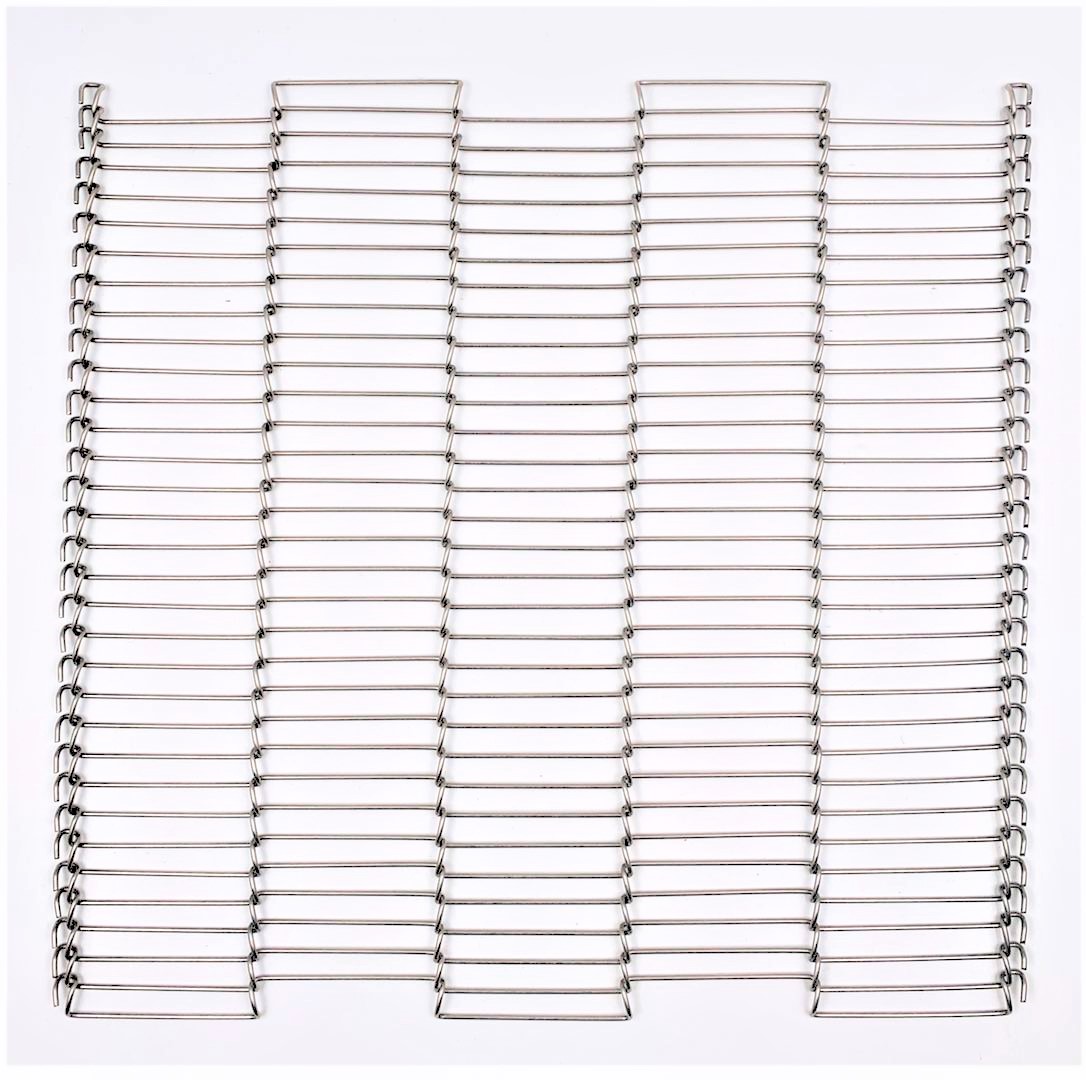

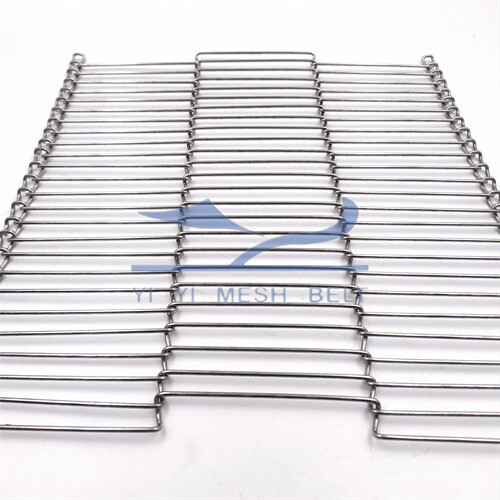

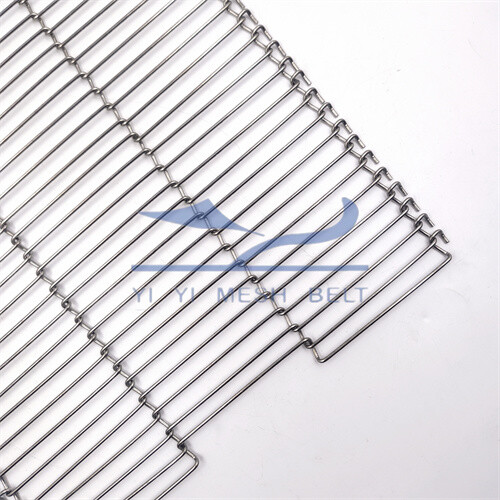

Trapezoidal mesh belt is made by digital mesh weaving machine, using high tensile stainless steel wire for production with. Trapezoidal mesh belt with a single layer structure, positively driven by sprocket.  Edge  finish normally with single loop,  for special application, stopper spiral can manufacture as per request. Trapezoidal mesh belt widely used in linear conveyor, can also be used to turn conveyor.

Mesh belt multi-use single small side structure, double small side structure for special purposes Trapezoidal mesh belt can run straight and curve running in 90 degree and 180 degree.

Features:

·Large  open area -70% to 85%, good ventilation

·Driven by  sprocket to ensure the stable running and accurate tracking

·Easy to clean, Hygienic design, clean-in-place capability

·Working temperature range from -55℃ to 300℃

·Belt surface is smooth which can carry light loads and medium loads;

Technical Specs

Material: SUS304, SUS316

Rod pitch (mm): 4.3 - 20

Wire diameter (mm) : 1 , 1.2 , 1.4 , 1.5 , 1.6 , 1.8 , 2 , 2.3 , 3

Belt width (mm): 200 - 3600

Belt Length:  Customized

Sprocket：Material & sprocket special is customized as per request

Customize specifications is available.

Key Industries：

Snack and bakery/ Meat poultry & seafood/ Fruits and vegetables / Dairy products/ Electronic

Key Application：

Cooking / Baking / Cooling / coatting/Frying/drying Dewatering / Sterilization& Pasteurizing /Transport

Applicable Mechanical Equipment:

Pizza machinery/chocolate machinery/confectionery machinery/drying equipment/cooling equipment/vegetable and dessert machinery/potato machinery
