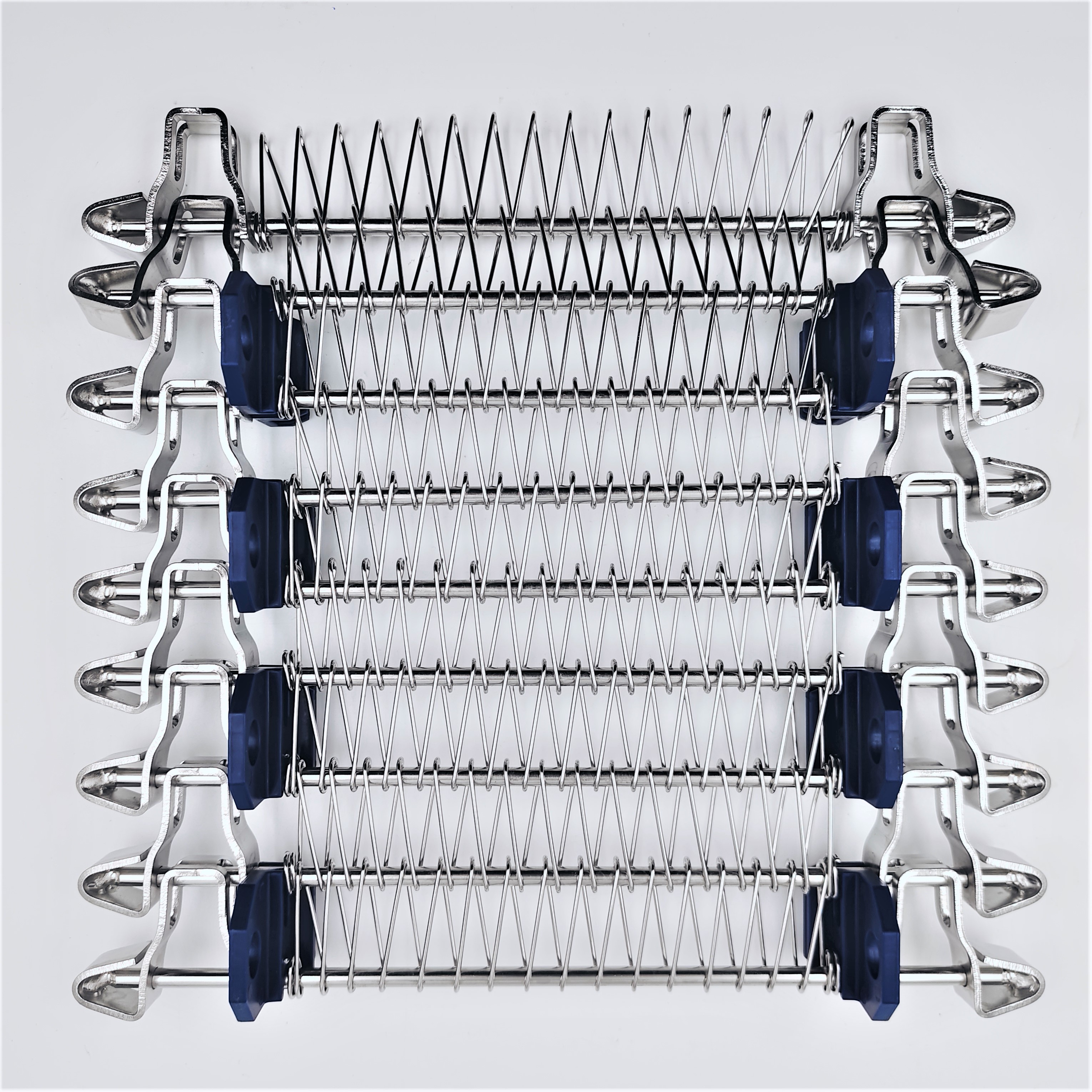

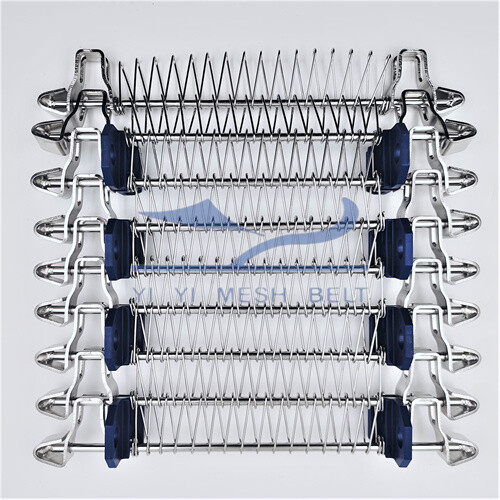

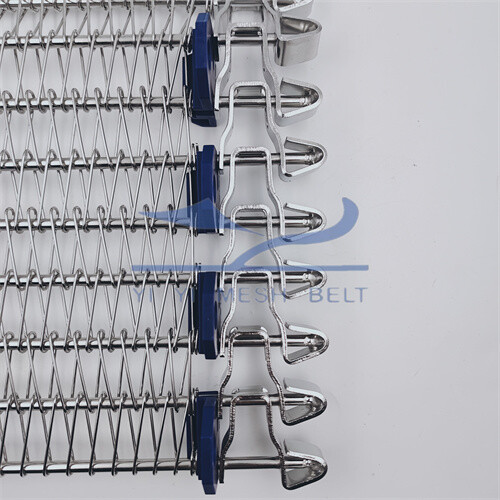

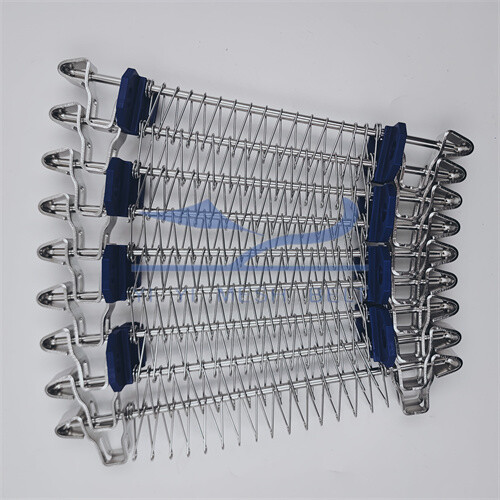

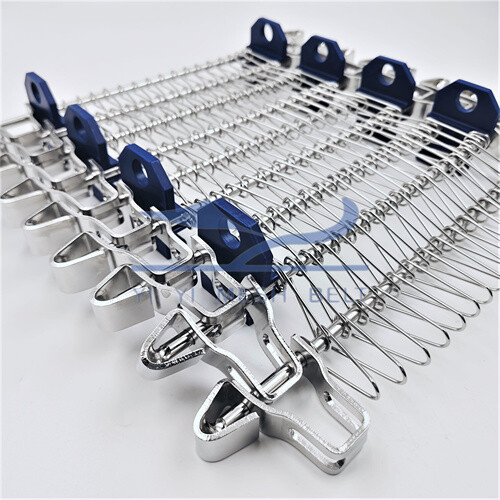

Side drive Belt is made by imported digital mesh weaving machine and comprised of wire mesh, cross rods and link runs by sprocket. Mesh belt surface is smooth, hard and durable. Mesh overlay can use stainless steel wire or plastic mold. Mesh belt driven by side gear, running smoothly, can bear heavy pressure and tension. Available in mesh overlay, rod only, side guard design.

Features:

1 High tensile strength hard wire is used for spiral, ensuring higher wear resistance

2 Smooth belt surface, excellent air ventilation, hygiene and easy to clean

3 Side sprocket driven, reduce friction to minimum. Straight-running and curve to 180 and 360 degrees.

4 Easy and Less maintenance job-single drive unit, together with special engage and release system for the drive unit wheels, make it simple and faster for maintenance job

Technical Specs：

Mesh Type: Stainless Steel

Rod Pitch (mm): 31.75 , 34

Rod Diameter(mm): 6.0

Spiral Pitch(mm):  12.

Spiral Diameter(mm): 1.4 , 1.5 , 1.6

Belt Width Range(mm): 310~1000mm

Edge finish: Welded

Belt Length:  Customized

Sprocket：Material & sprocket special is customized as per request

Customize specifications is available.

Technical Specs

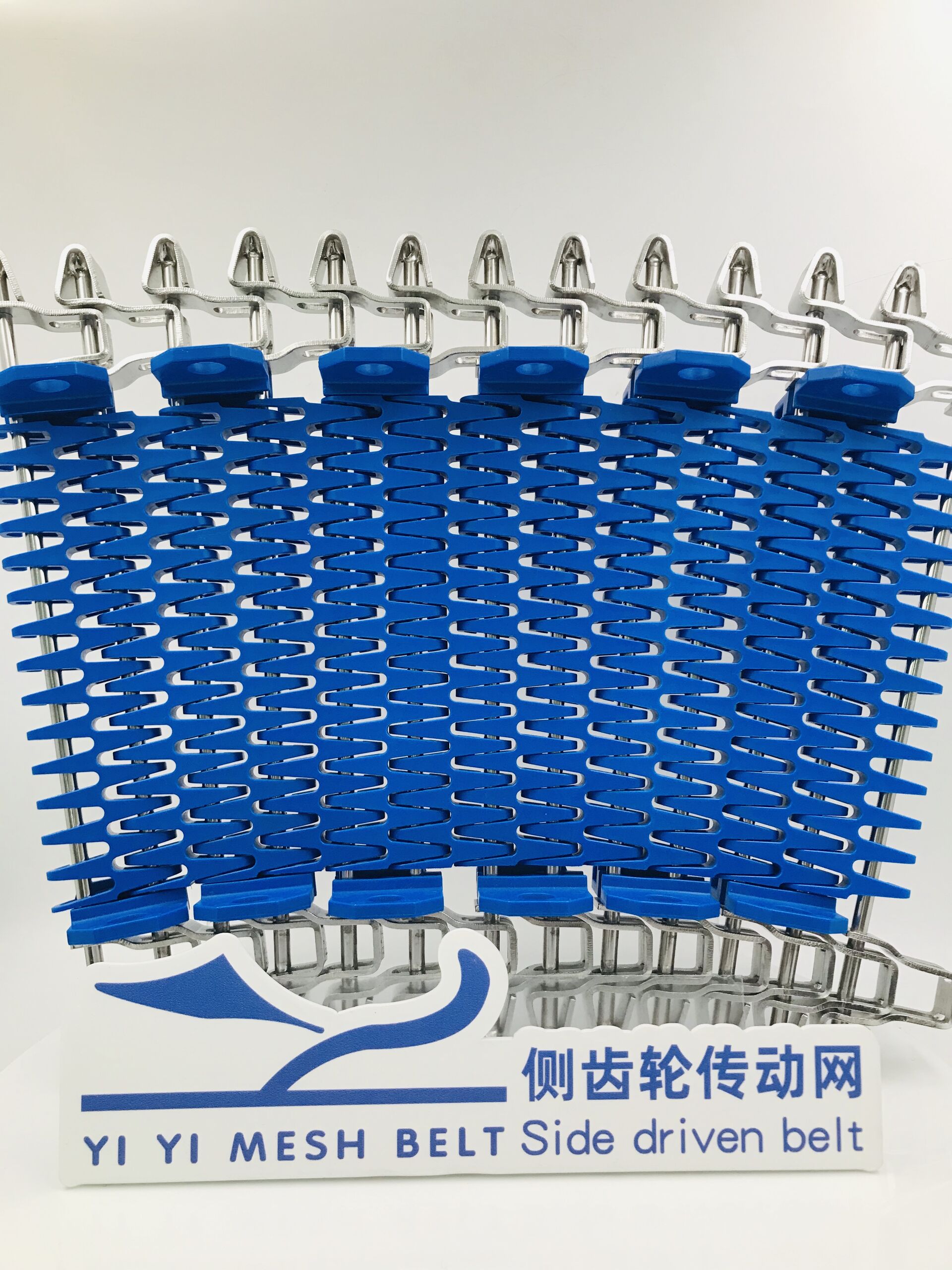

Mesh Type: Modular Plastic

Rod Pitch (mm): 31.75

Rod Diameter(mm): 6.0

Spiral Pitch (mm):  12.

Belt Width Range(mm): 310~1000mm

Edge finish: Welded

Belt Length:  Customized

Customize specifications is available.

Plastic Side Guard only for Rod pitch 31.75mm

Plastic Side Guard overall width(mm) 41.5

Plastic Side Guard height(mm) 33

Plastic Side overall Guard height(mm) 64

Key Industries：

Snack and bakery/ Meat poultry & seafood/ Fruits and vegetables / Dairy products/ food and beverage,

Key Application：

Proofing / Baking / Cooling / Freezing & chilling / / Dewatering / Sterilization& Pasteurizing / Package

Applicable mechanical equipment:

Spiral tower/packaging machinery/quick-freezing equipment/drying equipment
