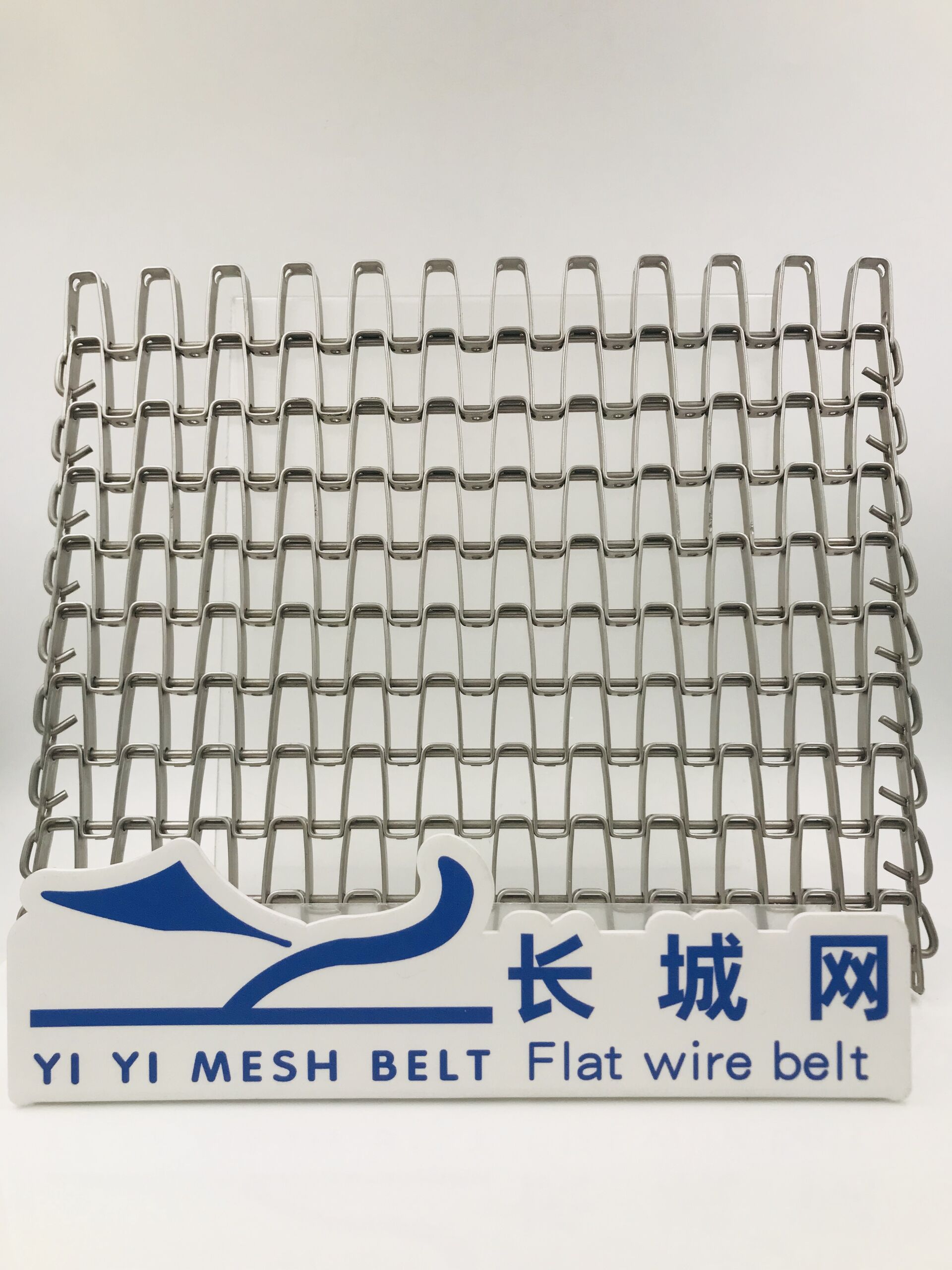

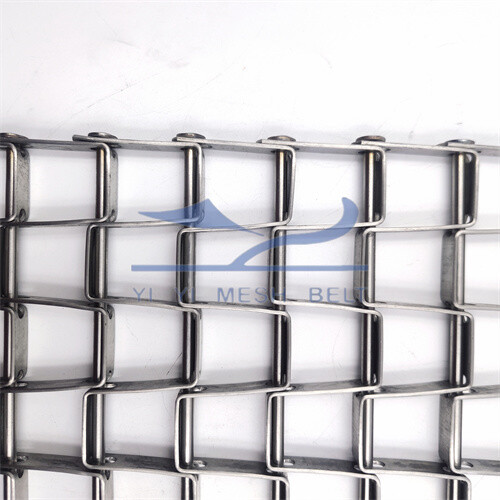

Flat wire belt is made from cross rod and flat strip.  Belt Edge finish with welded edge or clenched. Side guard and flight are available. It is easy to maintain and clean.  Long belt life is expected if used properly.

Advantages

· Flat and smooth conveying surface to carry unstable produce

· Large open area for free air flow or water drainage

· High strength to weight ratio to ensure can higher load and tensile strength

· Low maintenance, easy to clean and install.

·  Driven by  sprocket to ensure the stable running and accurate tracking

Technical Spec

Material: carbon steel , SUS201 , SUS304 , SUS316

Spiral pitch(mm): 12.7 - 40

Rod pitch(mm): 12.7 , 25.4 , 38.1 , 50.8

Rod diameter(mm) : 3 , 4 , 5 , 6 , 8

Belt width(mm):  200 - 4000

Belt Length:  Customized

Sprocket：Material & sprocket special is customized as per request

Customize specifications is available.

Key Industries：

Food Processing, building products, carpet production, clean energy industry solar panels and batteries, chemistry, electronics industry, wood, textiles, canning industry

Application：

Cooking / Baking / Cooling / Freezing/Frying/ drying Dewatering / Sterilization& Pasteurizing / washing/ Transport /

Applicable mechanical equipment:

Oven equipment/ freezing equipment/ Dehydrating equipment/ sterilizing equipment/drying equipment/filtering equipment/ cleaning equipment/cooling equipment/ quenching tank / package equipment / Sorting equipment
